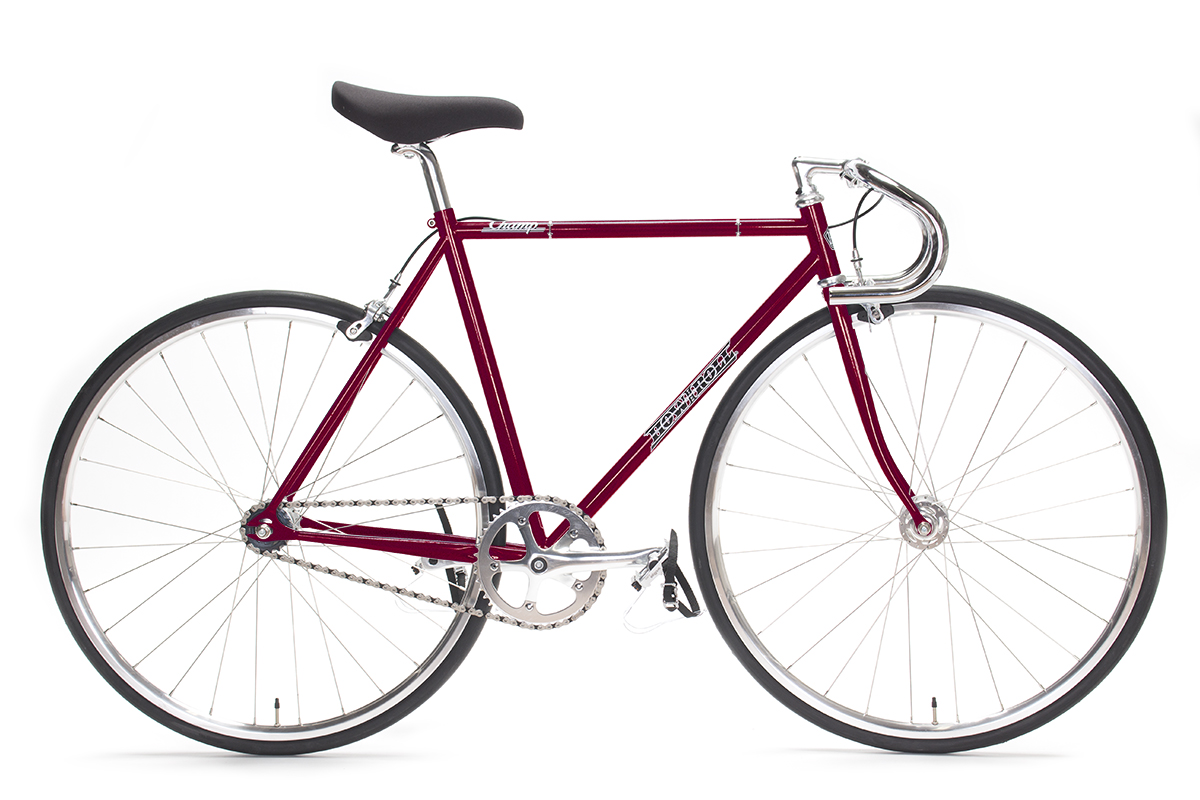

CHAMP

Showing drop Handle Bar pics.
Price : Please check at dealer shop.
Color : Black,White,Silver Blue,Neon Orange
Size(C-T) : 500mm, 520mm, 540mm, 560mm

Frame : 4130 Cr-Mo Double butted TT & DT
Fork : 4130 Cr-Mo
Handlebar : Nitto B123 Steel 380mm Njs or Alloy 580mm Flat Bar
Head set : 1″ Threaded Jis
Bartape : –
Grip : Rubber(Flat Bar)
Stem : Alloy 1″ 80mm or 100mm
Seat : Velo
Seatpost : Alloy Φ27.2
BB : Sealed 68mm Jis
Crank : 6061-T6 Alloy 165mm, 130pcd
Chainring : 46T, 130pcd
Pedals : Wellgo w/Steel toeclips
Chain : Kmc
Cog : Steel 17T
Freewheel : 17T
Hubs : Alloy Sealed 32h
Rims : Alloy 32h
Brakes : Alloy
Brakelevers : Dia-Compe MX121
Front Tires : IRC 700 x 25c
Rear Tires : IRC 700 x 25c

500mm Size
Seat Tube(C-T) : 500mm
Top Tube : 515mm
Head Angle : 74°
Seat Angle : 75°
Chain Stay : 395mm
BB : 55mm Drop
End Width : 120mm

520mm Size
Seat Tube(C-T) : 520mm
Top Tube : 525mm
Head Angle : 74°
Seat Angle : 75°
Chain Stay : 395mm
BB : 55mm Drop
End Width : 120mm

540mm Size
Seat Tube(C-T) : 540mm
Top Tube : 535mm
Head Angle : 74°
Seat Angle : 75°
Chain Stay : 395mm
BB : 55mm Drop
End Width : 120mm

560mm Size
Seat Tube(C-T) : 560mm
Top Tube : 545mm
Head Angle : 74°
Seat Angle : 75°
Chain Stay : 395mm
BB : 55mm Drop
End Width : 120mm
